Cyton Board SDK

The OpenBCI Cyton boards communicate using a byte string (mostly ASCII) command protocol. This Doc covers command use for the OpenBCI Cyton and 8bit boards. Some of the commands are board specific, where noted. Further this Doc covers the commands needed in order to alter the radio system. There have been several iterations of the firmware, the 8bit board runs v0, while the Cyton runs v1 and Boards shipped as of Fall 2016 run v2.0.0. v3.0.0 will begin shipping with boards in August of 2017.

Cyton Command Protocol Overview#

Cyton boards have two powerful microcontrollers on board, and come pre-programmed with the firmware. The RFduino radio link uses the Nordic Gazelle stack and library. The Board mounted RFduino is configured as a DEVICE. The microcontroller (PIC32MX250F128B or ATmega328P) has been programmed with firmware that interfaces between the ADS1299 (Analog Front End), LIS3DH (Accelerometer), micro SD (if installed), and RFduino (Radio module). The user, or application, controls the board by sending commands over wireless serial connection. You should have received a Dongle with the OpenBCI board. The Dongle has an RFduino running the Gazelle library configured as a HOST, and interfaces your computer through a Virtual Com Port (FTDI).

On startup, the OpenBCI 8bit board (v0) sends the following text over the radio:


OpenBCI V3 8bit BoardSetting ADS1299 Channel ValuesADS1299 Device ID: 0x3ELIS3DH Device ID: 0x33$$$

the OpenBCI Cyton board with firmware v1 sends the following text over the radio:


OpenBCI V3 16 channelADS1299 Device ID: 0x3ELIS3DH Device ID: 0x33$$$

the OpenBCI Cyton board with firmware v2.0.0 sends the following text over the radio:


OpenBCI V3 8-16 channelADS1299 Device ID: 0x3ELIS3DH Device ID: 0x33Firmware: v2.0.0$$$

Device ID info is useful for general board health confirmation. The $$$ is clear indication to the controlling application that the message is complete and the Cyton board is ready to receive commands. As of v2.0.0, there is an additional printout to indicate the exact firmware version.

Pay attention to timing when sending commands when using v0 and v1 firmware. There must be some delay before and after sending a command character from the PC (controlling program or user running a terminal). As of v2.0.0, this is no longer the case, send as fast as you can!

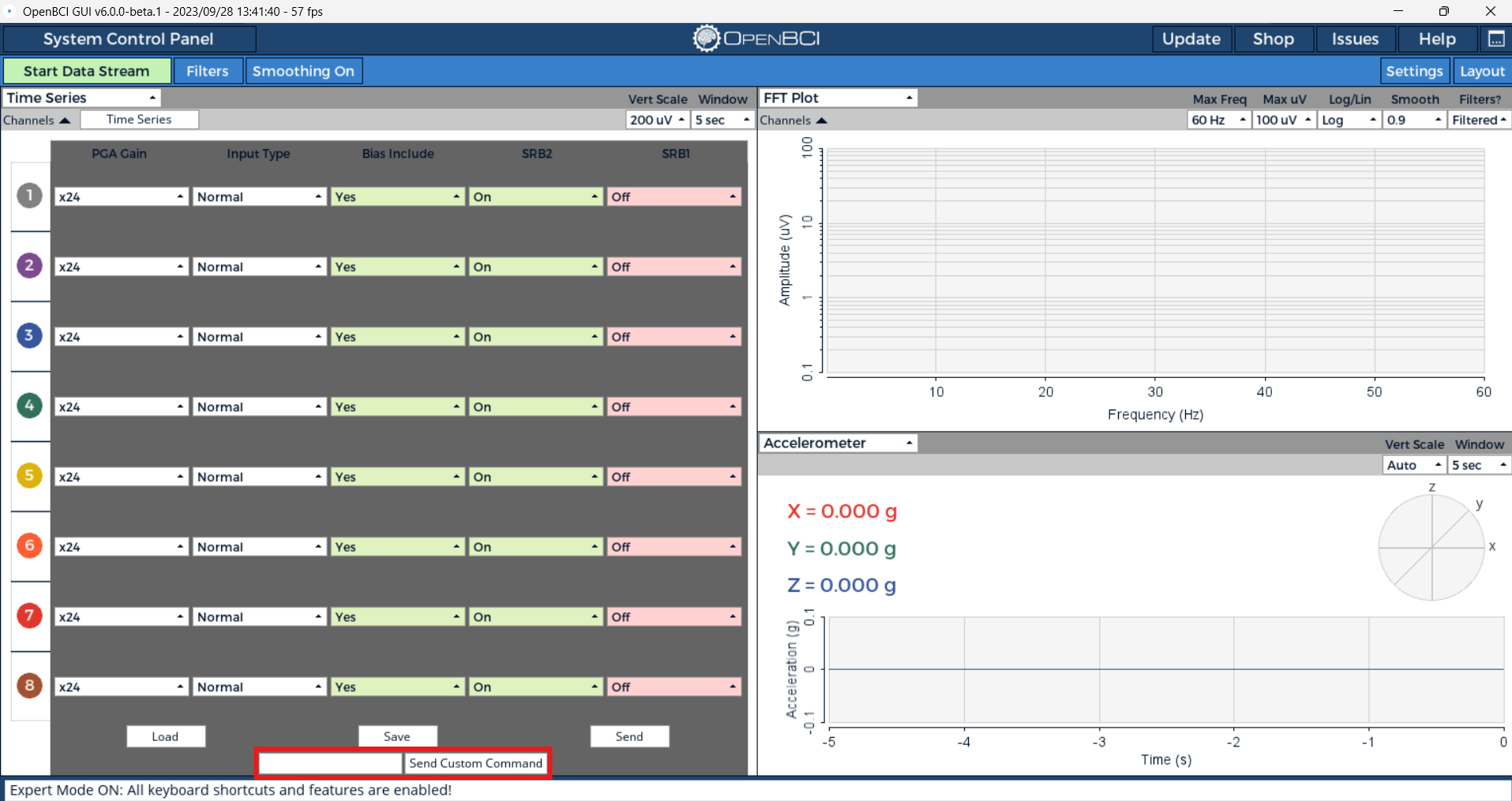

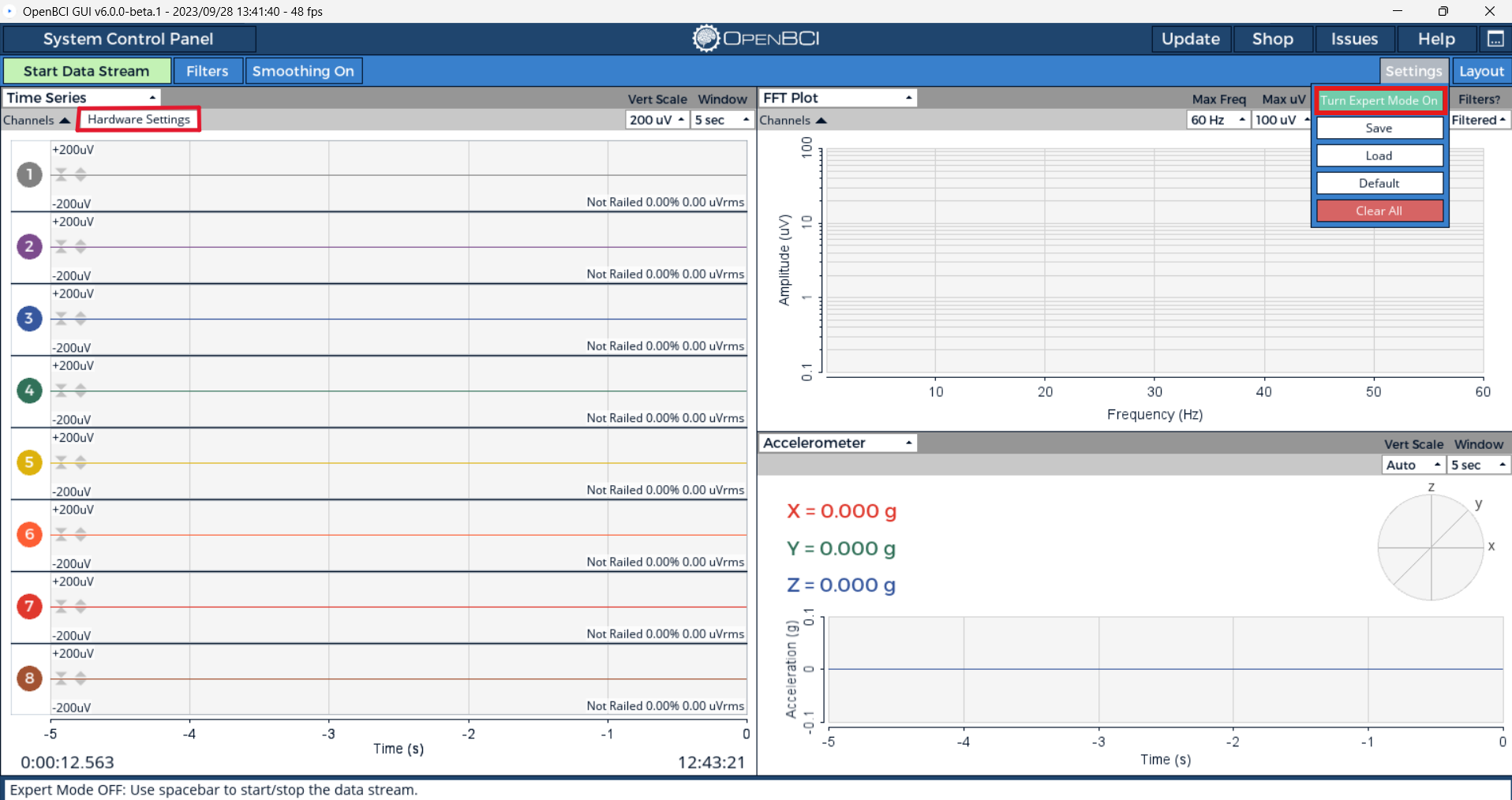

Command Set#

Turn Channels OFF#

1 2 3 4 5 6 7 8
These ASCII characters turn the respective channels [1-8] off. The channel will read 0.00 when off during streamData mode. These commands work in and out of streamData mode.

returns none, there is no confirmation.

Turn Channels ON#

! @ # $ % ^ & *
These ASCII characters turn the respective channels [1-8] on. The channel will read ADC output values during streamData mode. These commands work in and out of streamData mode.

returns none, there is no confirmation.

Test Signal Control Commands#

0 - = p [ ]
Turn all available channels on, and connect them to internal test signal. These are useful for self test and calibration. For example, you can measure the internal noise by sending 0 which connects all inputs to an internal GND. If streaming, the stream will be stopped, the proper registers set on the ADS1299, and the stream will be resumed.

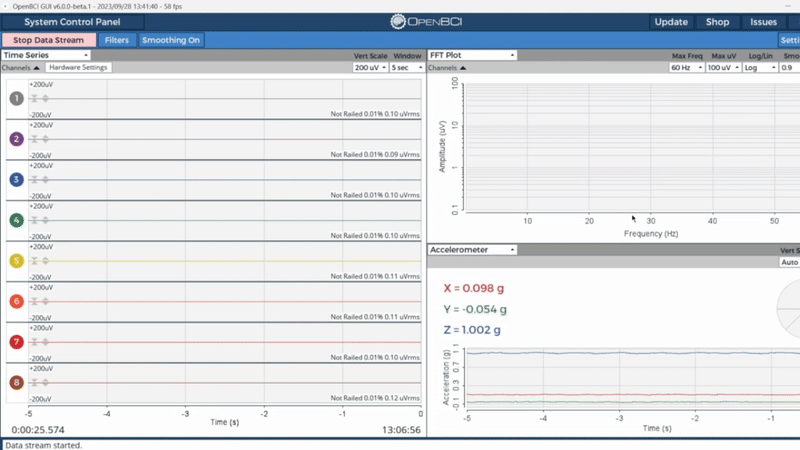

  • 0 Connect to internal GND (VDD - VSS)

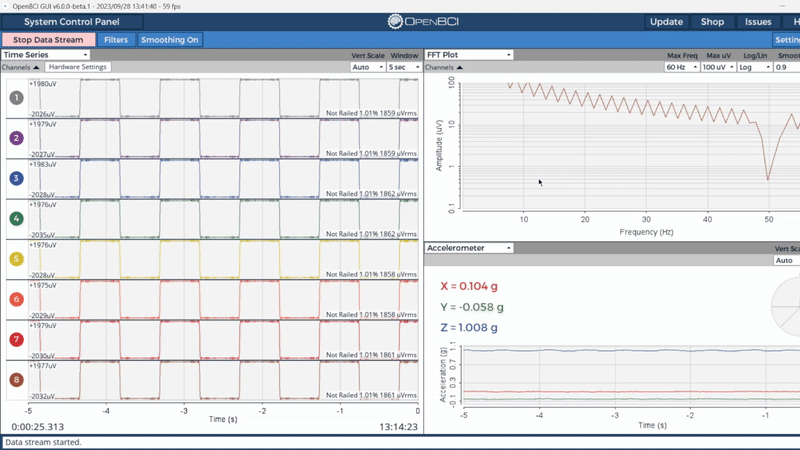

  • - Connect to test signal 1xAmplitude, slow pulse

  • = Connect to test signal 1xAmplitude, fast pulse

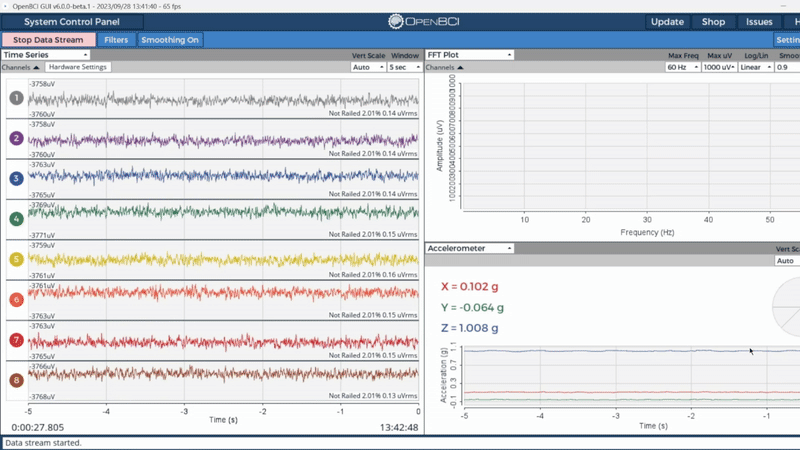

  • p Connect to DC signal

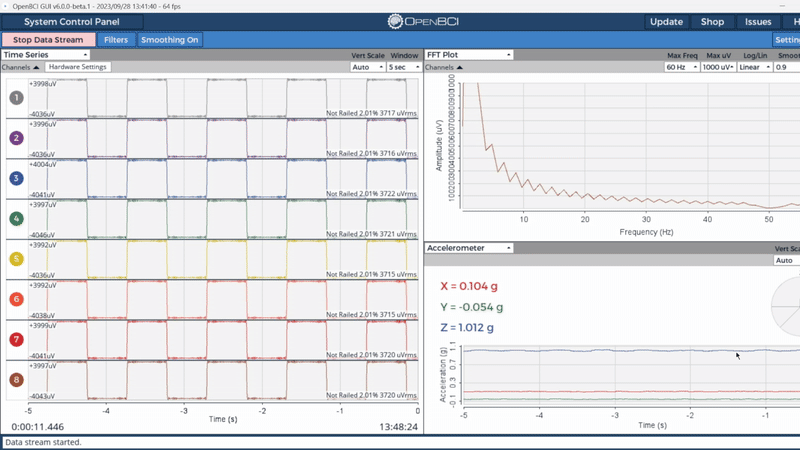

  • [ Connect to test signal 2xAmplitude, slow pulse

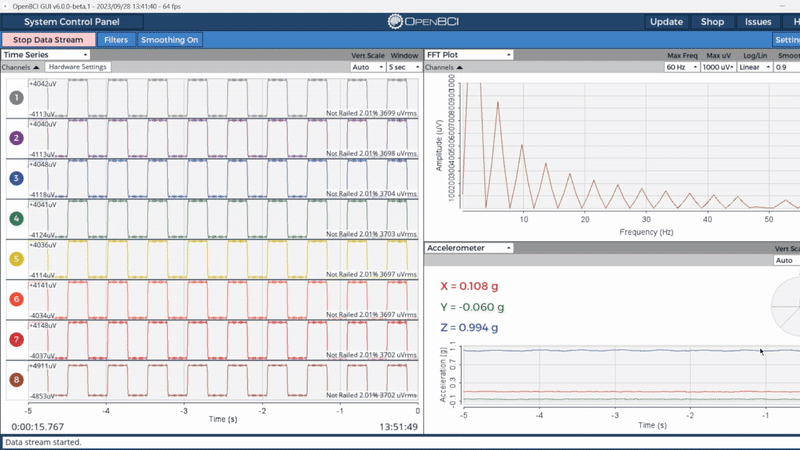

  • ] Connect to test signal 2xAmplitude, fast pulse

    Note: Not all possible internal test connections are implemented here

returns If not streaming, returns Success: Configured internal test signal.$$$, if streaming, there is no confirmation.

Channel Setting Commands#

x (CHANNEL, POWER_DOWN, GAIN_SET, INPUT_TYPE_SET, BIAS_SET, SRB2_SET, SRB1_SET) X
Channel Settings commands have six parameters for each ADS channel. To access Channel Settings, first send x. The OpenBCI board will then expect the next 7 bytes to be channel settings specific commands. The first byte is the channel number. (If you have the Daisy Module, you can select up to 16 channels to set). The following six ASCII characters are accepted as parameters to set. Lastly, sending X will latch the settings to the ADS channel.

CHANNEL

  • 1 2 3 4 5 6 7 8 for single board channel select
  • Q W E R T Y U I for selecting channels on the Daisy Module

POWER_DOWN

  • 0 = ON (default)
  • 1 = OFF

GAIN_SET

  • 0 = Gain 1
  • 1 = Gain 2
  • 2 = Gain 4
  • 3 = Gain 6
  • 4 = Gain 8
  • 5 = Gain 12
  • 6 = Gain 24 (default)

INPUT_TYPE_SET
Select the ADC channel input source

  • 0 ADSINPUT_NORMAL (default)
  • 1 ADSINPUT_SHORTED
  • 2 ADSINPUT_BIAS_MEAS
  • 3 ADSINPUT_MVDD
  • 4 ADSINPUT_TEMP
  • 5 ADSINPUT_TESTSIG
  • 6 ADSINPUT_BIAS_DRP
  • 7 ADSINPUT_BIAS_DRN

BIAS_SET
Select to include the channel input in BIAS generation.

  • 0 = Remove form BIAS
  • 1 = Include in BIAS (default)

SRB2_SET
Select to connect this channel's P input to the SRB2 pin. This closes a switch between P input and SRB2 for the given channel, and allows the P input also remain connected to the ADC.

  • 0 = Disconnect this input from SRB2
  • 1 = Connect this input to SRB2 (default)

SRB1_SET
Select to connect all channels' N inputs to SRB1. This effects all pins, and disconnects all N inputs from the ADC.

  • 0 = Disconnect all N inputs from SRB1 (default)
  • 1 = Connect all N inputs to SRB1

EXAMPLE

User sends x 3 0 2 0 0 0 0 X

'x' enters Channel Settings mode. Channel 3 is set up to be powered up, with gain of 2, normal input, removed from BIAS generation, removed from SRB2, removed from SRB1. The final 'X' latches the settings to the ADS1299 channel settings register.

For firmware v0 and v1 it is required that you allow a time delay (>10mS) when setting the channel and parameters. As of v2.0.0, you may stack multiple channel settings together such as:

EXAMPLE

User sends x1020000Xx2020000Xx3020000X

This will set the first three channels.

returns

On success:

  • If streaming, no confirmation of success. Note: WiFi Shields will always get a response, even if streaming.
  • If not streaming, returns Success: Channel set for 3$$$, where 3 is the channel that was requested to be set.

On failure:

  • If not streaming, NOTE: WiFi shield always sends the following responses without $$$
    • Not enough characters received, Failure: too few chars$$$ (example user sends x102000X)
    • 9th character is not the upper case 'X', Failure: 9th char not X$$$ (example user sends x1020000V)
    • Too many characters or some other issue, Failure: Err: too many chars$$$
  • If not all commands are not received within 1 second, Timeout processing multi byte message - please send all commands at once as of v2$$$

Default Channel Settings#

d To set all channels to default

returns if not streaming, updating channel settings to default$$$

D To get a report of the default settings send.

returns When you query the default settings, expect to get 6 ASCII characters followed by $$$

Note: Users can change the default channel settings in the initialization function inside the OpenBCI library. Requires re-programming the board

LeadOff Impedance Commands#

z (CHANNEL, PCHAN, NCHAN) Z
This works similar to the Channel Settings commands. For firmware v0 and v1 care must be taken to delay between sending characters, as of v2.0.0, you may send as fast as possible in a byte stream. Impedance settings have two parameters for each ADS channel. Impedance is measurable by applying a small 31.5Hz AC signal to the given channel.

  • 0 = Test Signal Not Applied (default)
  • 1 = Test Signal Applied

EXAMPLE

User sends z 4 1 0 Z or z410Z

'z' enters Impedance Settings mode. Channel 4 is set up to measure impedance on the P input. The final 'Z' latches the settings to the ADS registers.

returns

On success:

  • If streaming, no confirmation of success. Note: WiFi Shields will always get a response, even if streaming.
  • If not streaming, returns Success: Lead off set for 4$$$, where 4 is the channel that was requested to be set.

On failure:

  • If not streaming, NOTE: WiFi shield always sends the following responses without $$$
    • Not enough characters received, Failure: too few chars$$$ (example user sends x102000X)
    • 5th character is not the upper case 'X', Failure: 5th char not Z$$$ (example user sends x1020000V)
    • Too many characters or some other issue, Failure: Err: too many chars$$$
  • If not all commands are not received within 1 second, Timeout processing multi byte message - please send all commands at once as of v2$$$

SD card Commands#

A S F G H J K L
Send to initiate SD card data logging for specified time

  • A = 5MIN
  • S = 15MIN
  • F = 30MIN
  • G = 1HR
  • H = 2HR
  • J = 4HR
  • K = 12HR
  • L = 24HR
  • a = about 14 seconds for testing

j
Stop logging data and close SD file

Stream Data Commands#

b
Start streaming data

returns none, there is no confirmation. NOTE: when command from WiFi shield, confirmation is Stream started.

s
Stop Streaming data

returns none, there is no confirmation. NOTE: when command from WiFi shield, confirmation is Stream stopped.

Miscellaneous#

?
Query register settings

returns Read and report all register settings for the ADS1299 and the LIS3DH. Expect to get a verbose serial output from the OpenBCI Board, followed by $$$

v

Soft reset for the Board peripherals
The 8bit board gets a reset signal from the Dongle any time an application opens the serial port, just like a arduino. The Cyton board doesn't have this feature. So, if you want to soft-reset the Cyton board (v1 or v2.0.0), send it a v.

returns OpenBCI V3 8-16 channel ADS1299 Device ID: 0x3E LIS3DH Device ID: 0x33 Firmware: v3.1.1 $$$

16 Channel Commands#

Currently, the Daisy Module is implemented only on the Cyton board. The Daisy Module adds 8 more input channels for a total of 16. These are the commands specific to controlling the ADS1299 on the Daisy Module.

Turn Channels OFF#

q w e r t y u i
These ASCII characters turn the respective channels [9-16] off. The channel will read 0.00 during streamData mode. These commands work in and out of streamData mode.

returns none, there is no confirmation.

Turn Channels ON#

Q W E R T Y U I
These ASCII characters turn the respective channels [9-16] on. The channel will contain ADC values during streamData mode. These commands work in and out of streamData mode.

returns none, there is no confirmation.

Select maximum channel number#

c

Use 8 channels only. If the Daisy Module is attached, it will be unattached, and access to only channels 1-8 are available.

returns

  • If daisy is not present, no confirmation is sent because the board is already in the 8 channel mode. NOTE: If command from WiFi Shield then No daisy to remove is returned.
  • If a daisy is present, returns daisy removed$$$.

C Use 16 channels.

returns

  • If daisy already attached, returns 16$$$.
  • If the daisy is not currently attached and is not able to be attached, then no daisy to attach!8$$$ is returned.
  • If the daisy is not currently attached and is able to be attached, then daisy attached16$$$ is returned.

Note: On reset, the OpenBCI Cyton board will 'sniff' for the Daisy Module, and if it is present, it will default to 16 channel capability.

Firmware v2.0.0 New Commands#

Firmware v2.0.0 was the first overhaul from Push The World which stabilized the core code and added several key new features to improve the user experience. As of firmware version v2.0.0, a set of commands has been implemented to change the radio system and improve over-the-air programming of the main Cyton board. In order to use the commands you must keep to the form of key-code-(payload) where key is0xF0, code is defined below and payload is optional and dependent on the code. For example, to get system status send 0xF0 then send 0x07.

If the RFDuinos cannot speak to each other, you will see a Failure: Communications timeout - Device failed to poll host which means the Device RFDuino (on the Cyton) has stopped polling the Host RFDuino on the Dongle.

Time Stamping#

<

Start time stamping and resynchronize command. When the Driver sends a <, the Host radio will respond with a ,. Since the Host cannot send packets to the Device ad hoc, it may be helpful to know when the Host was actually able to send the command. If the Board is not streaming, then expect a response of Time stamp ON$$$. If the board is streaming, then you will get a response in the data stream when the Driver receives a data packet with a different stop byte as described in the document titled OpenBCI Streaming Data Format.

returns if not streaming, Time stamp ON$$$, if streaming then no confirmation

>

Stops time stamping. If the Board is not streaming, then expect a response of Time stamp OFF$$$; however if the board is streaming, then you will get a response in a different stop byte as described in the document titled OpenBCI Streaming Data Format.

returns if not streaming, Time stamp OFF$$$, if streaming then no confirmation

Get Radio Channel Number#

0x00

Returns either success or failure. If you get a failure, it will give you the host channel number and a failure message. If success it gives you both host and device channel numbers and a success message. Channel numbers can only be 1-25. The byte before EOT ($$$) will contain the channel number value in HEX.

EXAMPLE User sends 0xF0 0x00 to get the system to channel number

Set Radio System Channel Number#

0x01

If your radio system is up and talking, i.e. You sent 0xF007 and got a Success response signifying the Device and Host are on the same channel number.

Returns either success or failure. On failure it will ask you to verify the channel number and print a failure message. On success, it gives you both host and device channel numbers and a success message. Channel numbers can only be 1-25. The byte before EOT ($$$) will contain the channel number value in HEX.

EXAMPLE User sends 0xF0 0x01 0x07 to set the system to channel 7

Set Host Radio Channel Override#

0x02

If your radio system is not up and talking, i.e. You sent 0xF007 and got a Failure response signifying the Device and Host are not on the same channel number OR your Cyton does not have power. If your Cyton is powered on you can cycle the Host through all possible 25 channels in an attempt to realign your Host and Device on the same radio channel.

Returns either success or failure. On failure it will ask you to verify the channel number and print a failure message. If success it sends "Host Override" followed by the channel number. Channel numbers can only be 1-25. The byte before EOT ($$$) will contain the channel number value in HEX.

EXAMPLE User sends 0xF0 0x02 0x01 force the only the Host to channel 1

Radio Get Poll Time#

0x03

The poll time is a critical factor in over the air uploads. There is a direct correlation between poll time, CPU performance, and successful over the air uploads of the Pic32 software. If you are continuously getting failures, check out your poll time and increase if needed. If you have a good computer, you can try lowering the poll time to speed up your over the air uploads!

Returns success followed by the poll time in HEX.

EXAMPLE User sends 0xF0 0x03 to get the system to poll time number

Radio Set Poll Time#

0x04

The poll time is a critical factor in over the air uploads. There is a direct correlation between poll time, CPU performance, and successful over the air uploads of the Pic32 software. If you are continuously getting failures, check out your poll time and increase if needed. If you have a good computer, you can try lowering the poll time to speed up your over the air uploads!

Returns either success or failure. On failure it will send a "Communications Timeout" message. On success it sends success followed by the poll time in HEX. Values sent must be from 0-255 and must be sent in HEX. Defaults to 80ms.

EXAMPLE User sends 0xF0 0x04 0x40 which sets the poll time to 64ms.

Radio Set HOST to Driver Baud Rate to Default#

0x05

Tells the Host RFDuino to send UART Serial data out at 115200 to the FTDI Virtual Serial Port.

Returns success and sends the baud rate in ASCII 115200.

EXAMPLE User sends 0xF0 0x05 to set the baud rate to 115200

Radio Set HOST to Driver Baud Rate to High-Speed mode#

0x06

Tells the Host RFDuino to send UART Serial data out at 230400 to the FTDI Virtual Serial Port. Note this does not help increase sample rate of the system, but it does help prevent dropped packets by allowing the computer to pull data off the serial-port faster because the data arrives so much faster to the FTDI virtual serial port.

Returns success and sends the baud rate in ASCII 230400.

EXAMPLE User sends 0xF0 0x06 to set the baud rate to 230400

Radio Set HOST to Driver Baud Rate to Hyper-Speed mode#

0x0A

Tells the Host RFDuino to send UART Serial data out at 921600 to the FTDI Virtual Serial Port. Note this does not help increase sample rate of the system, but it does help prevent dropped packets by allowing the computer to pull data off the serial-port faster because the data arrives so much faster to the FTDI virtual serial port.

Returns success and sends the baud rate in ASCII 921600.

EXAMPLE User sends 0xF0 0x0A to set the baud rate to 921600

Radio System Status#

0x07

Get a health status check of your RFDuino to RFDuino communications.

Returns success or failure. On failure it will send a "Failure: System is down$$$" message. On success, it will send a "Success: System is up$$$" message.

EXAMPLE User sends 0xF0 0x07 to get status

Firmware v3.0.0 New Commands#

Supporting all v1.0.0 and v2.0.0, the v3.0.0 firmware extends the OpenBCI system to allow for a variable sample rate and analog or digital input readings!

Sample Rate#

~(COMMAND)
This works similar to the Channel Settings commands, however, there is no latching character. Power cycling the OpenBCI board will cause the sample rate to reset back to default of 250Hz.

IMPORTANT! The Cyton with USB Dongle cannot and will not stream data over 250SPS. Plug in the WiFi Shield to get speeds over 250SPS streaming. You may still write to an SD card though, the firmware will not send EEG data over the Bluetooth radios.

COMMAND

  • 0 = 16000 Hz
  • 1 = 8000 Hz
  • 2 = 4000 Hz
  • 3 = 2000 Hz
  • 4 = 1000 Hz
  • 5 = 500 Hz
  • 6 = 250 Hz
  • ~ = Get current sample rate

EXAMPLE

First, user sends ~~

returns Sample rate is 250Hz$$$

Then, user sends ~5

returns Sample rate set to 500Hz$$$

NOTE: if not all commands are not received within 1 second, Timeout processing multi byte message - please send all commands at once as of v2$$$

Board Mode#

/(COMMAND)
This works similar to the sample rate. Power cycling the OpenBCI board will cause the board mode to return to default mode with accelerometer in the aux bytes.

COMMAND

  • 0 = Default mode - Sends accelerometer data in aux bytes
  • 1 = Debug mode - Sends serial output over the external serial port which is helpful for debugging.
  • 2 = Analog mode - Reads from analog pins A5(D11), A6(D12) and if no wifi shield is present, then A7(D13) as well.
  • 3 = Digital mode - Reads from analog pins D11, D12 and D17. If no wifi present then also D13 and D18.
  • 4 = Marker mode - Turns accel off and injects markers into the stream by sending `X where X is any char to add to the first AUX byte.
  • / = Get current board mode

EXAMPLE

First, user sends //

returns Board mode is default$$$

Then, user sends /2

returns Board mode set to analog$$$

NOTE: if not all commands are not received within 1 second, Timeout processing multi byte message - please send all commands at once as of v2$$$

Wifi Shield Commands#

{"{"}

Try to attach a Wifi Shield

returns Success will send response Success: Wifi attached$$$ on failure response will be Failure: Wifi not attached$$$. Failure happens when the wifi shield is not powered up or the wifi shield does not power correctly. Try power cycling the system if failure continues.

{"}"}

Remove an attached wifi shield.

returns Success will send response Success: Wifi removed$$$ on failure response will be Failure: Wifi not removed$$$. Failure occurs when no wifi shield is present to remove.

:

Get the status of the wifi shield, will either be connected or not connected.

returns With wifi shield successfully attached will send response Wifi present$$$. If there is no OpenBCI board attached, will send Wifi not present, send { to attach the shield$$$.

;

Perform a soft reset of the Wifi shield. Will do a power on reset of just the wifi shield.

Get Version#

V To get firmware version

returns v3.1.1$$$

Unused ASCII Characters#

These are currently unused (and user available) characters in the OpenBCI Cyton platform:

9 ( ) _ o O f g h k l ' " n N M , . (space)
